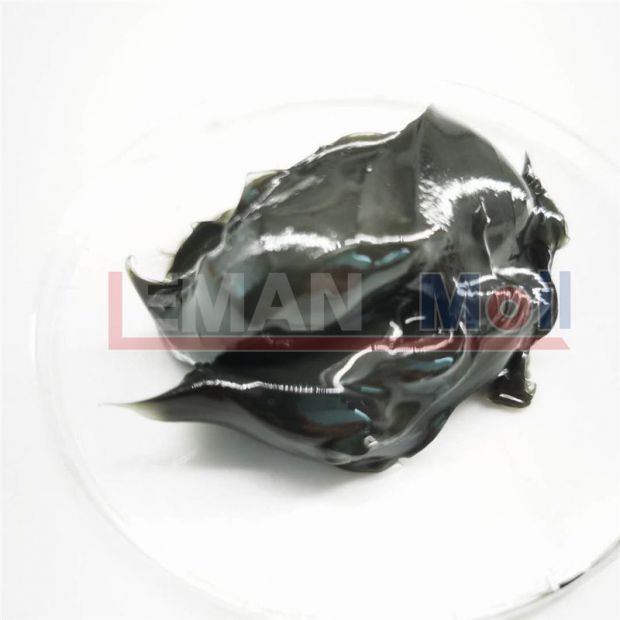

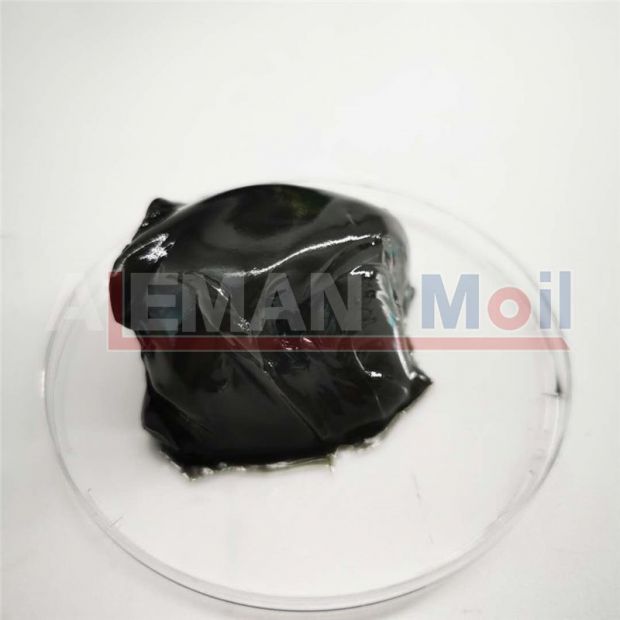

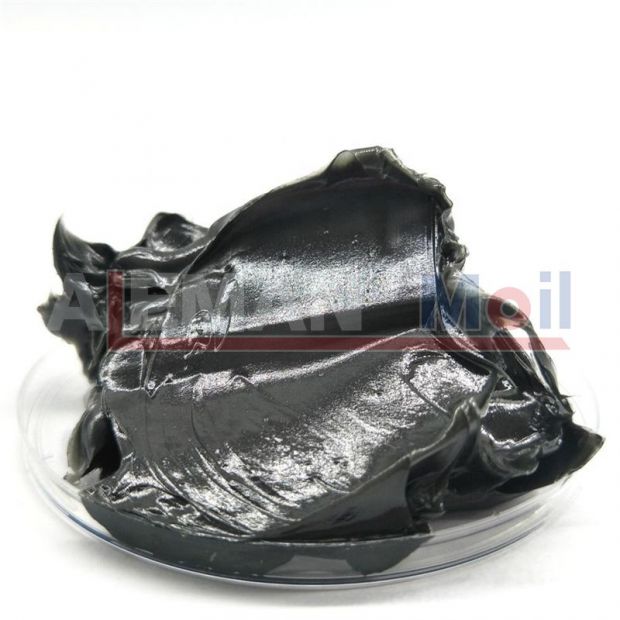

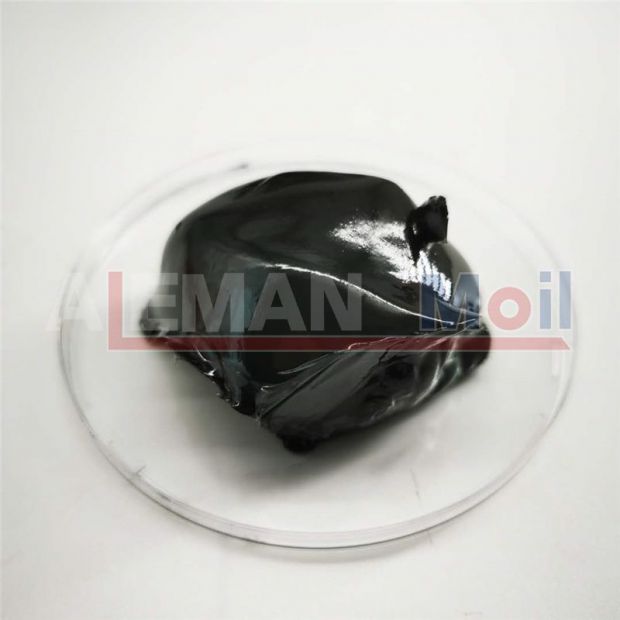

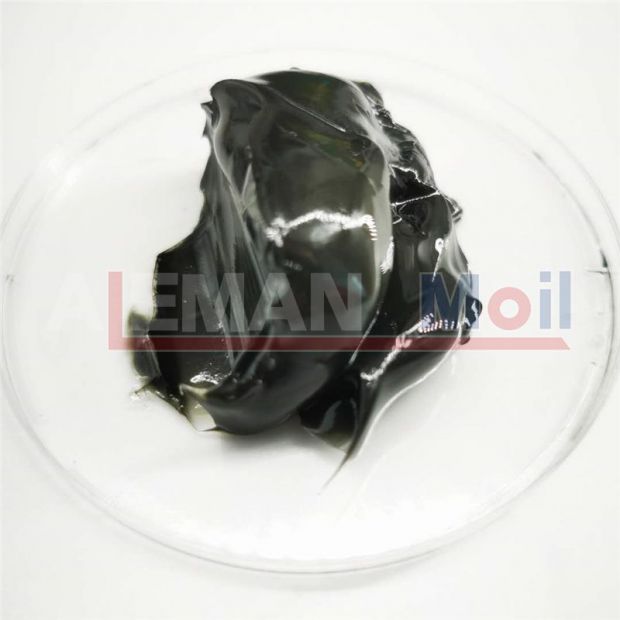

Graphite grease is a graphite lubricant made by thickening ester mineral oil with inorganic thickeners, and refining it with ultra-fine graphite powder, antioxidant, anti-corrosion and other additives.
Packages
1 Liter Bottle
4 Liter Bucket
5 Liter Bucket
18 Liter Bucket
200 Liter Drum
Different packages available.
Provide customized packaging as per our clients' requirements.
Features & Benefits
Typical Properties
Application
Features & Benefits
Excellent high-temperature resistance and antioxidant stability, with an extremely long high-temperature service life.
Excellent extreme pressure wear resistance and adhesion, low friction coefficient, and strong load-bearing capacity.
Excellent mechanical and chemical stability, resistant to water vapor and weak acid and alkali corrosion.
Excellent resistance to water immersion and erosion, providing rust and corrosion protection in harsh environments.
Typical Properties
| Item | Data | Test Method | ||
| NLGI Grade | 1 | 2 | 3 | |
| Color | Smooth, Black, Buttery | |||
| Working cone penetration,0.1mm | 329 | 289 | 240 | ASTM D217 |
| Dropping Point, ℃ | 194 | 199 | 200 | ASTM D 566 |
| Water Washout, (38 ℃, 1h), Wt.% | 3.5 | 1.25 | 1.25 | ASTM D1264 |
| cSt@100 °C(range) | 9-12 | 9-12 | 9-12 | |
| Apparent Viscosity, -15 °C，10s-1, Pas | 198 | 320 | 891 | |
| Oxidation Stability, 100h@99 °C&758kPa,pressure drop, kPa | 19 | 30 | 49 | |
| Colors and specifications can be Customized | ||||
Attentions
Prevent water and impurities during storage and transportation.
Do not mix with other type of greases.
Do not heat before using.
Application
Suitable for lubrication, rust prevention, and anti-corrosion protection of low-speed, high-temperature, and heavy-duty friction components, such as bearings, bushings, gears, chains, turntables, guide rails, fasteners, couplings, and automotive steel plate springs;
Please leave your requests for any products you would like. We will be happy to search for you in our database or provide you with a customized service.
